Thermal break flush aluminium system for doors
The EKU 78 TT series for external doors with thermal break has been designed to achieve accesses with internal or external openings bearing panic and coplanar surfaces on both sides. Thanks to special accessories, the doors in this series can be integrated into the building’s automation. Designed to meet the most stringent energy requirements imposed by current European regulations, it is ideal for the construction of large-sized openable or fixed windows, in combination with the hinged windows in the EKU 78 TT series for windows with thermal break.
The geometry of the profiles and the use of high-quality components guarantee great sturdiness in the structure, which thus satisfies all load capacity requirements.
The EKU 78 TT doors are in harmony with the style of any context and offer good protection from atmospheric agents. The system offers a wide choice of finishes, colors and effects to satisfy all aesthetic customization requests.
ADVANTAGES
- excellent thermal insulation with thermal transmittance values uf of the profiles, among the lowest in their category
- sealing made of materials with high thermal insulation performance
- high resistance and minimum maintenance
- strength of the profiles for the construction of large frames
- accessories with a high weight capacity
- a wide range of profiles, shapes and finishings to meet every aesthetic and constructive need

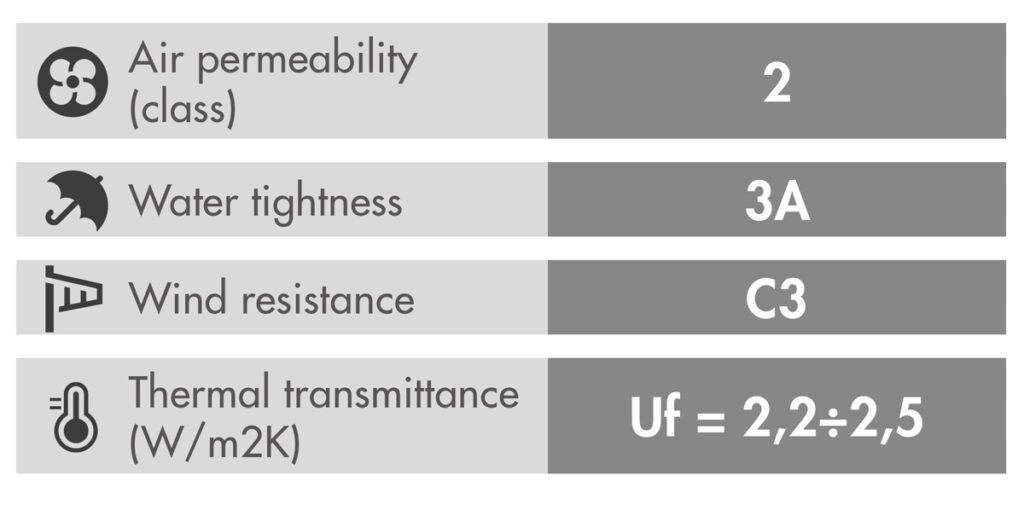

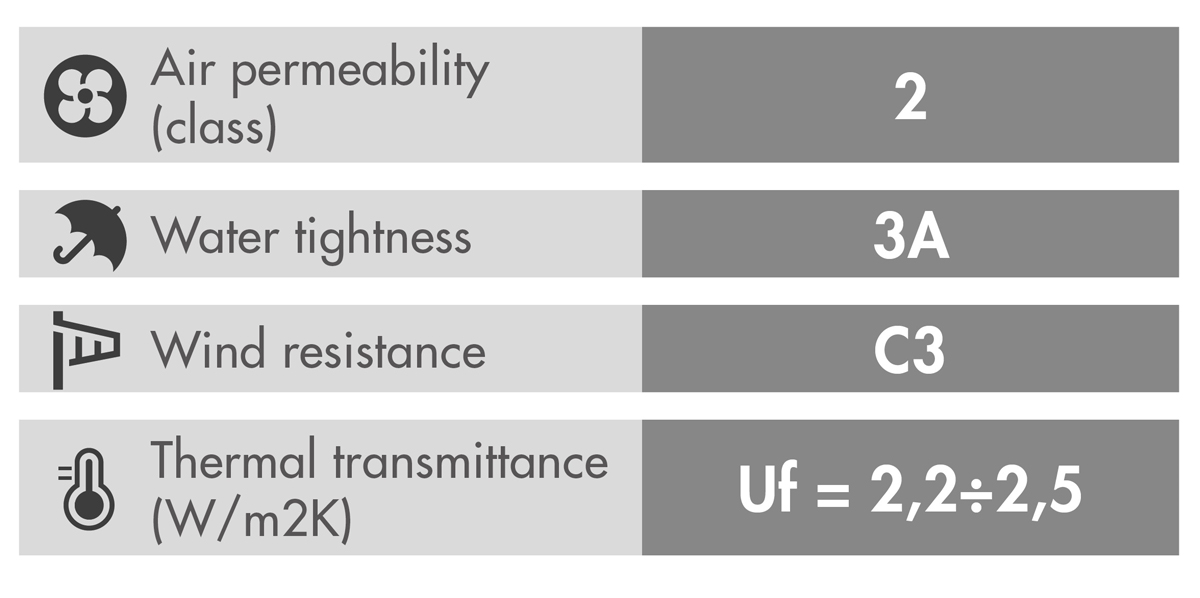

FEATURES
| Basic dimensions: | section fixed frame and wing 78 mm |
| Maximum thickness of the glass: | 60 mm |
| Glass height: | 22 mm |
| Air-water sealing system: | double closing seal |
| Accessories housing seat: | sizing according to the European chamber 14-18 mm |
